RF Shielding Measurements

Brief Description

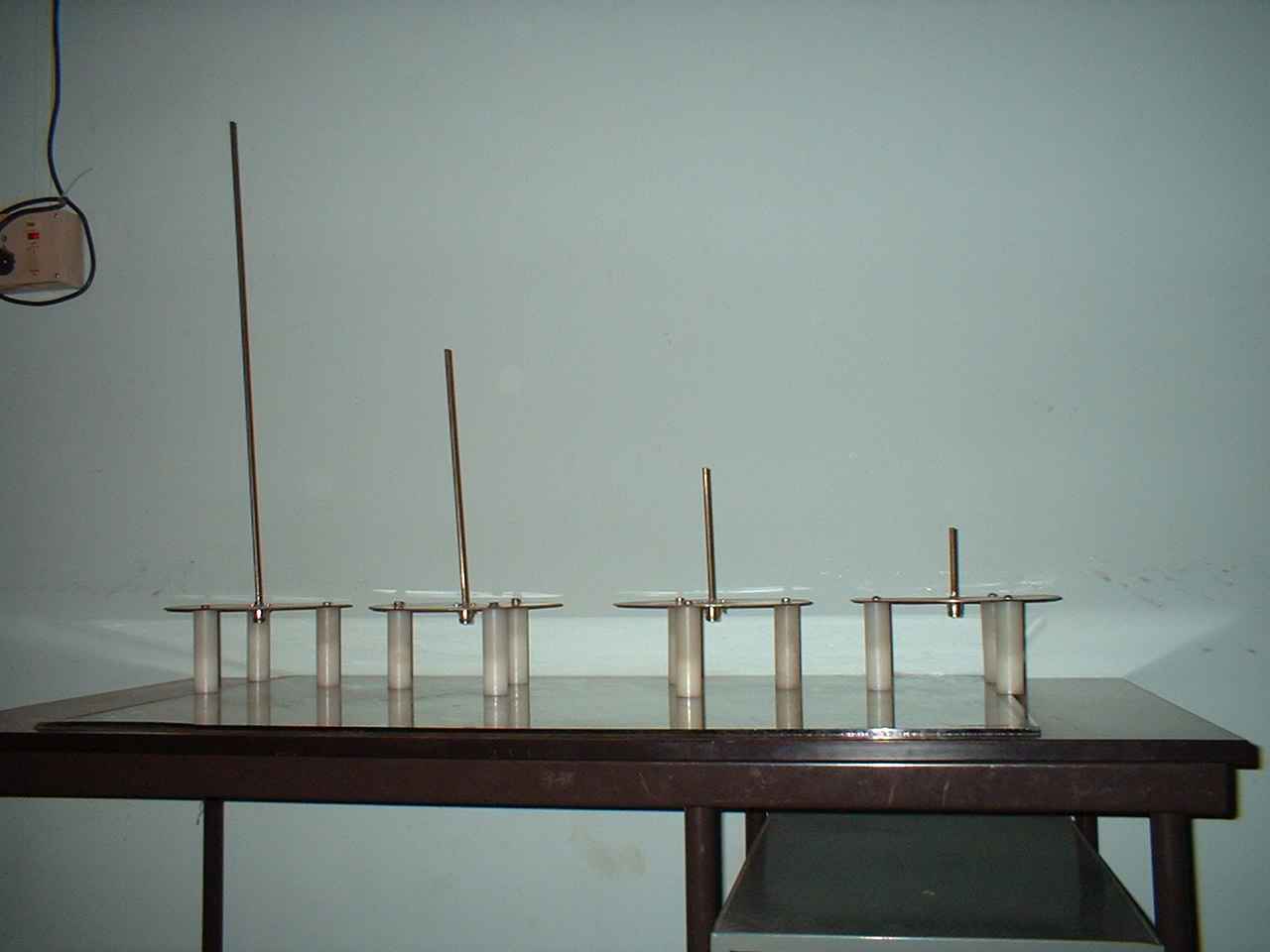

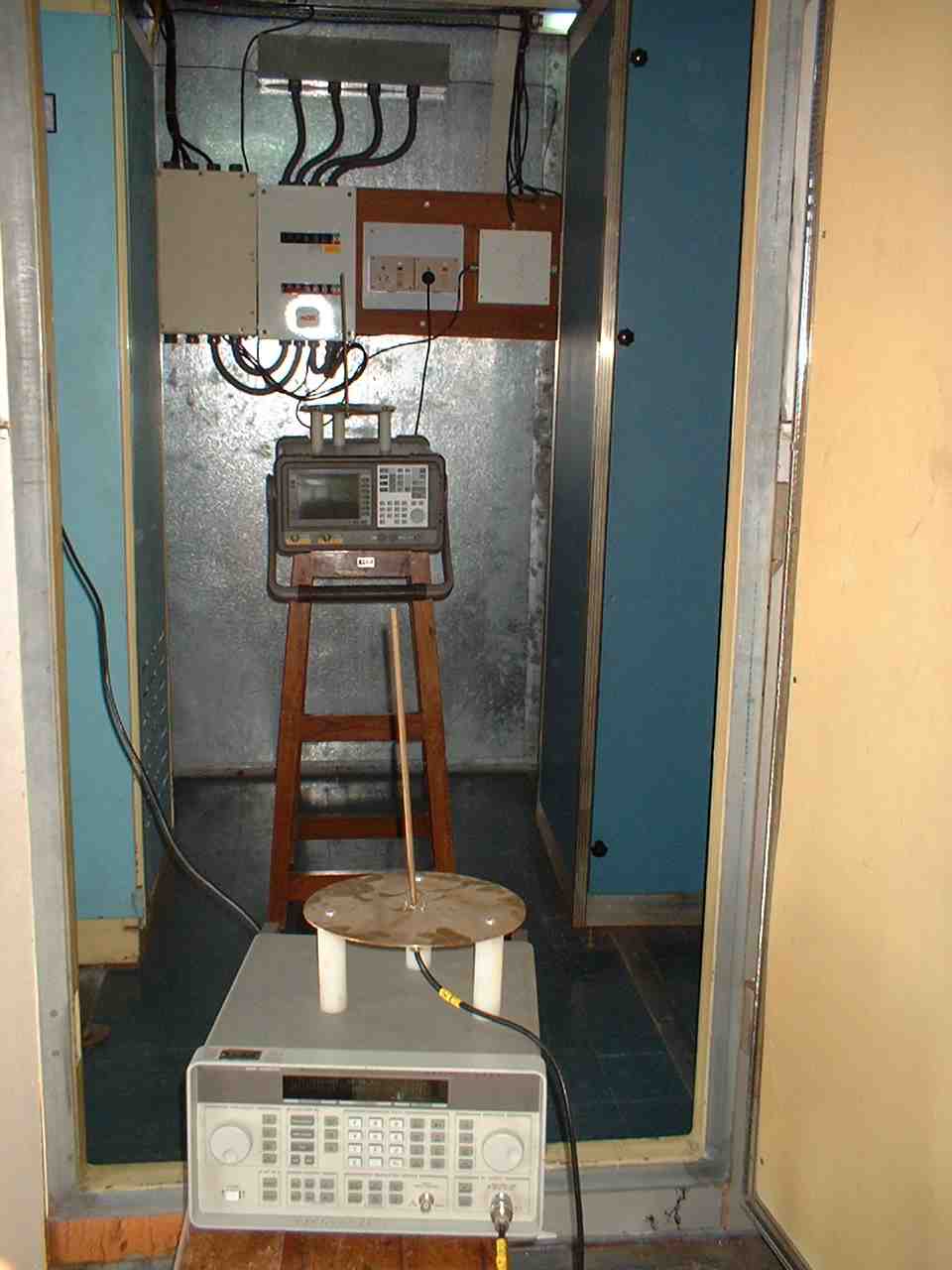

RF shielding measurements - Recently we have started checking the shielded cages for RFI shielding effectiveness. A set of antennas with signal generator and spectrum analyzer  is used for this purpose.  We have used insertion method for the measurement of shielding.  We have measured a shielding of the order of 40 dB in the  cages we have checked so far.
