Frontend System

Our Team: A. Praveen Kumar (Group Coordinator) 1. Anil Raut 2. Bhalerao, V. B. 3. Ramesh, S. 4. Manisha Parathe 5. Arati Sandikar

Block Diagram:

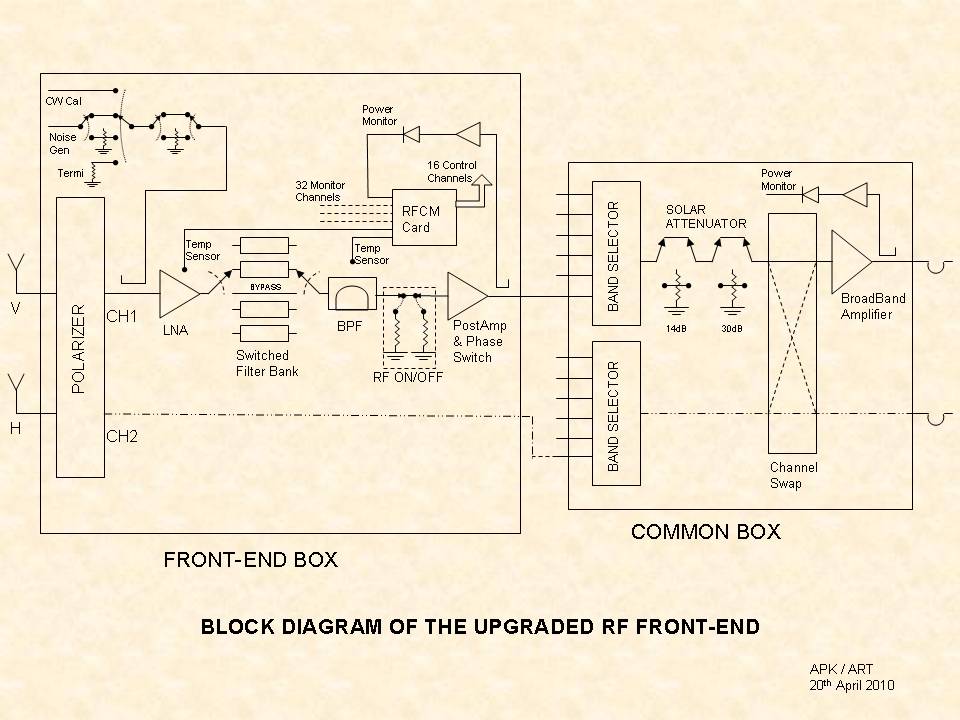

1. Upgraded RF Front End:

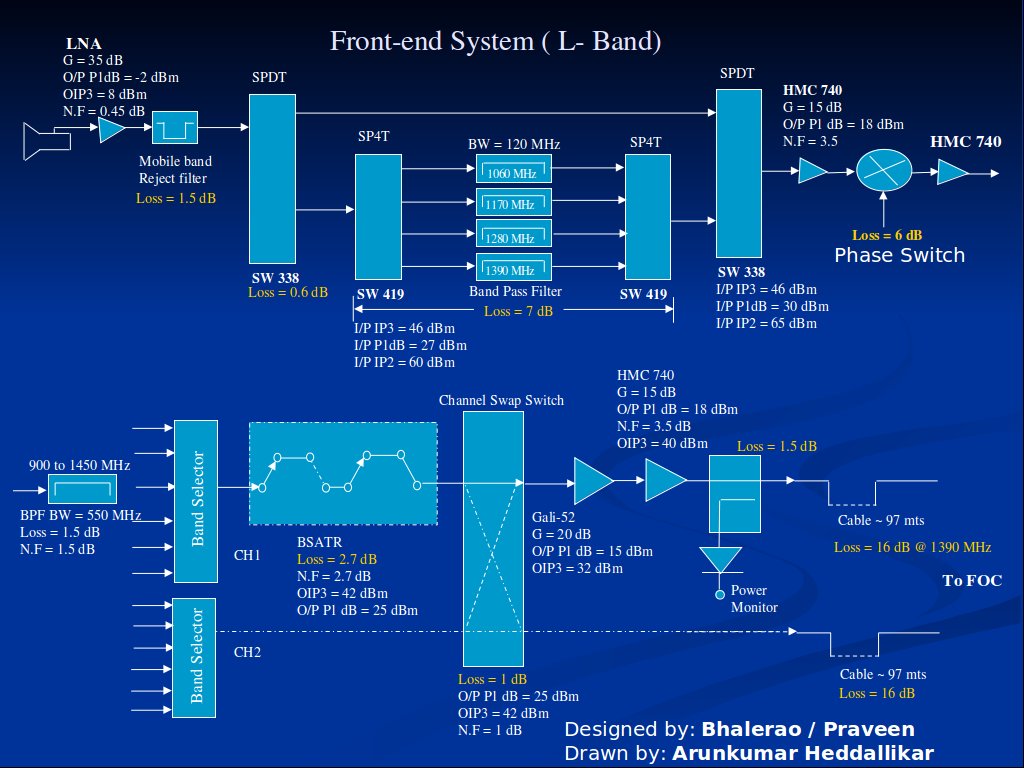

2. Front-End System L-Band:

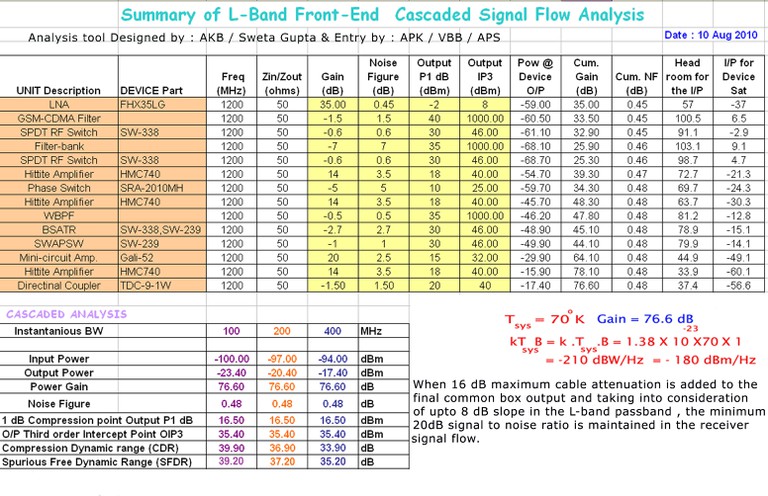

3. FE Analysis Summary:

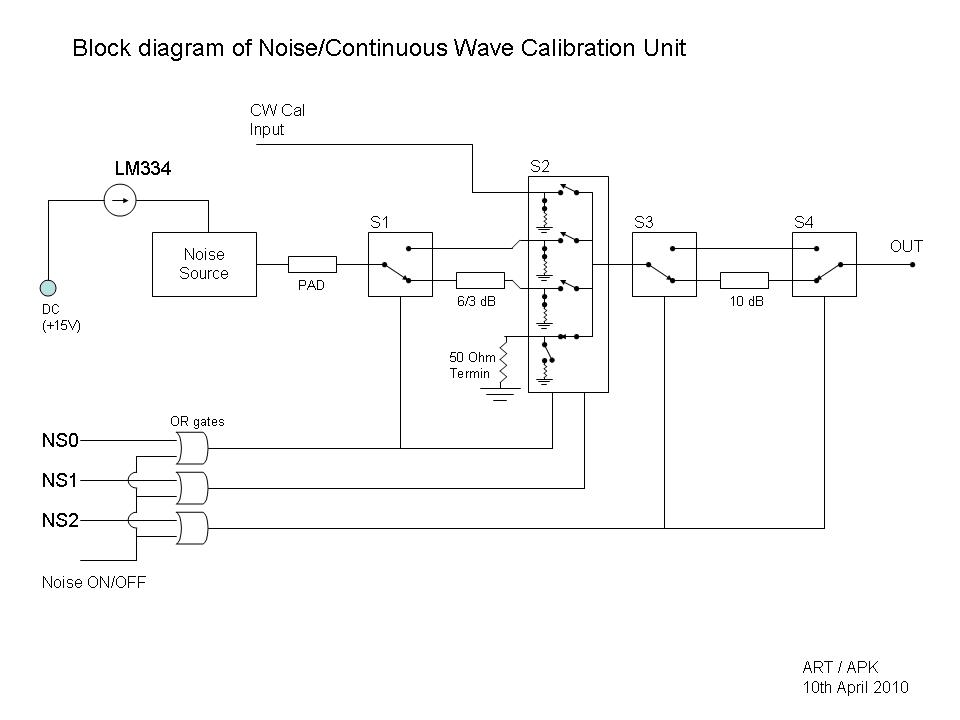

4. Noise Generator:

Reports:

1. Report on noise generator

2. ENR Measurement of Noise Source and Noise Generator

3. GMRT high dynamic L- band receiver

4. Broadband 300 – 500 MHz Front-End System for GMRT

5. Steps to Calculate Noise Generator ENR on Noise Figure Analyser



Presentations:

1. 11th Plan Presentation

Document Actions
