Kanekar et al. used the Karl G. Jansky Very Large Array (VLA) to obtain deep absorption spectra in four methanol (CH3OH) lines from the z=0.88582 gravitational lens towards PKS1830-211. Three of the four CH3OH lines have very different sensitivity coefficients to changes in the proton-electron mass ratio mu=m_p/m_e. A comparison between the redshifts of these lines thus allows one to test for temporal evolution in mu. Kanekar et al. compared the line shapes of the three CH3OH lines that have similar rest frequencies, 48.372, 48.377 and 60.531 GHz, and found their line profiles to be in excellent agreement. This yielded a robust constraint of ~4 parts in ten million on fractional changes in mu; this is the most stringent current constraint on changes in mu. Kanekar et al. thus find no evidence for changes in the proton-electron mass ratio over a lookback time of ~7.5 Gyr. The figure to the right shows the four CH3OH lines detected in the z=0.88582 lens with the VLA (two of the lines are in the middle panel, blended with each other); the line rest frequencies in Ghz are listed on the top left of each panel. The dashed blue curve in each panel shows a single Gaussian fit to each line.

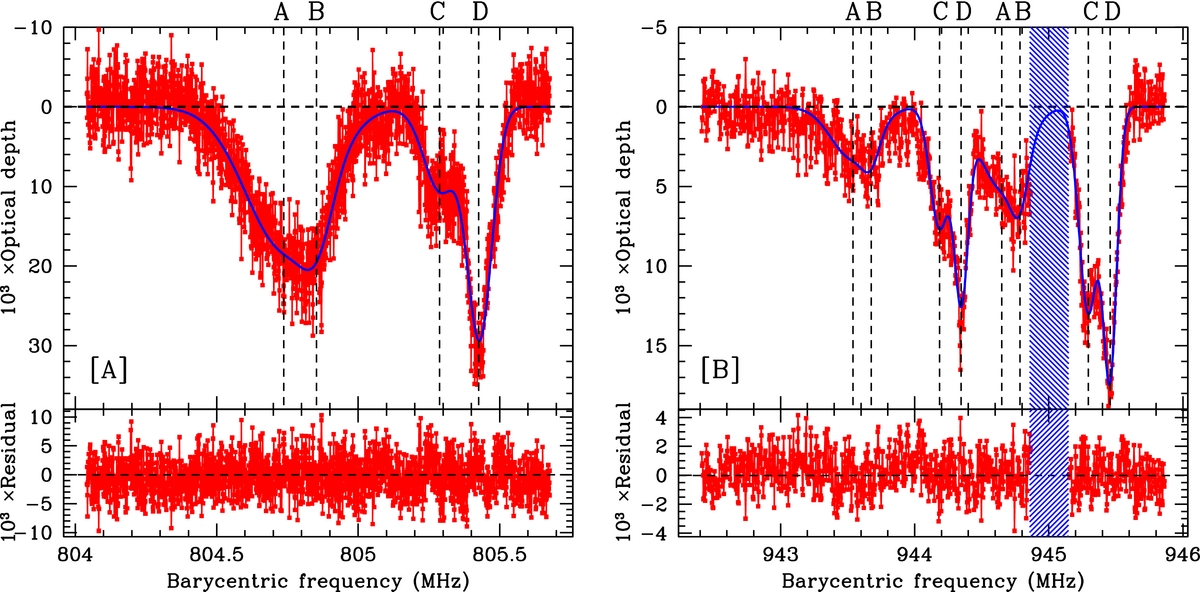

Kanekar et al. used the Green Bank Telescope to carry out spectroscocpy in the redshifted neutral hydrogen (HI) 21cm and hydroxyl (OH) 18cm lines from the z=0.765 absorption system toward the quasar PMN J0134-0931. A comparison between the "recentResults"satellite OH 18cm line redshifts, or between the redshifts of the HI 21cm and "recentResults"main OH 18 cm lines, is sensitive to changes in different combinations of the fine structure constant (alpha) and the proton-electron mass ratio (mu = m_p/m_e). A comparison between the redshifts of the HI 21cm and the OH 18cm lines, via a multi-Gaussian fit, yielded strong constraints on changes in a combination of alpha and mu, and no evidence for a change in the constants between z=0.765 and the present epoch. Incorporating the independent constraints on fractional changes in mu from another absorber at a similar redshift, Kanekar et al. found that fractional changes in alpha are less than ~3 parts in a million (at 2 sigma significance) over a look-back time of 6.7 Gyr. The top panels of the figure to the right show the HI 21cm and 18cm lines detected with the Green Bank Telescope, with the multi-Gaussian fit shown in blue. The lower panels show the residuals from each fit, which can be seen to be consistent with noise.

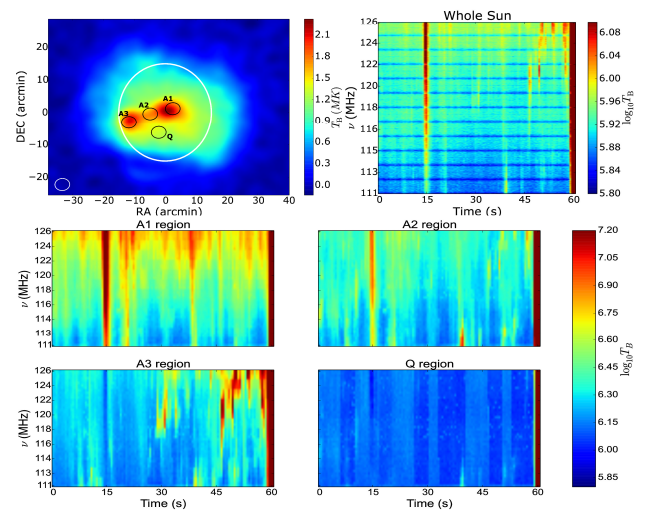

Low radio frequency solar emission spans a very large range in intensity, as well as temporal, spectral and spatial scales. Often multiple processes are going on simultaneously at different locations on the Sun, giving rise to different emissions. These emissions can differ greatly in their strengths and till recently one could usually only study the most intense of these sources. The significantly improved imaging dynamic range of the Mileura Widefield Array (MWA) is now making it possible to study comparatively weaker emissions in presence of more intense ones. In order to facilitate such studies, we have recently developed a new data product which will enable scientists to study the frequency and time variations of the emission coming from any specific patch on the Sun. Called SPREDS, an acronym for SPatially REsolved Dynamic Spectrum, it is named in analogy with the usual definition of a dynamic spectrum, which shows the variations of the emission in the time-frequency plane. We also presented the first flux calibrated solar images from the MWA. The accompanying figure shows an example: the top left panel shows a radio image of the Sun with some regions marked on it; the top right panel shows the dynamic spectrum for the entire Sun, which is the data product used most commonly at these frequencies; the remaining panels show the SPREDS from the corresponding regions marked in the solar disc. Note that the colour scale for these panels is in log scale, the differences between emissions from different regions on the Sun are self evident.

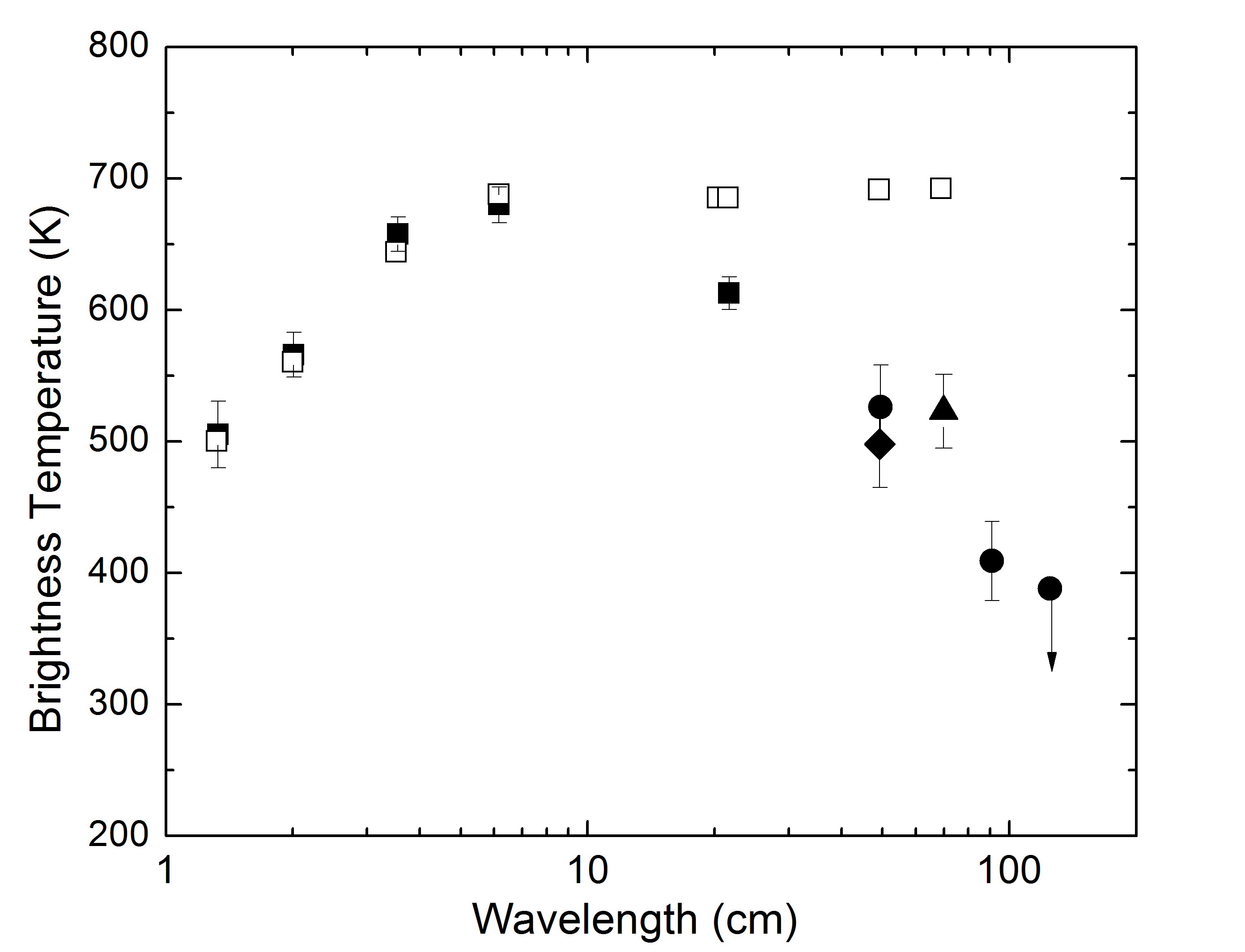

The surface of Venus has been studied by measuring radar reflections and thermal radio emission over the spectral range from several centimetres to metre wavelengths using Earth-based as well as orbiter platforms. Earlier non-imaging radio observations of Venus in the decimeter wavelength regime show a decreasing trend in the observed brightness temperature with increasing wavelength. The present-day thermal emission models however predict the brightness temperature to remain constant above wavelengths of about 10 cm. Mohan et al. report the first interferometric imaging observations of Venus below 620 MHz, which provide reliable brightness temperature measurements, and confirm this discrepancy. These observations were carried out at 606, 333 and 240 MHz using the GMRT. The brightness temperature values derived at the respective frequencies are 526 K, 409 K and <426 K, with errors of ∼7% which are generally consistent with the reported temperatures at 608 MHz and 430 MHz by previous investigators, but are much lower than those obtained by extrapolating from high-frequency observations at 1.38-22.46 GHz using the VLA. The circle and triangles show the measurements from this work, while the open boxes show the model prediction.

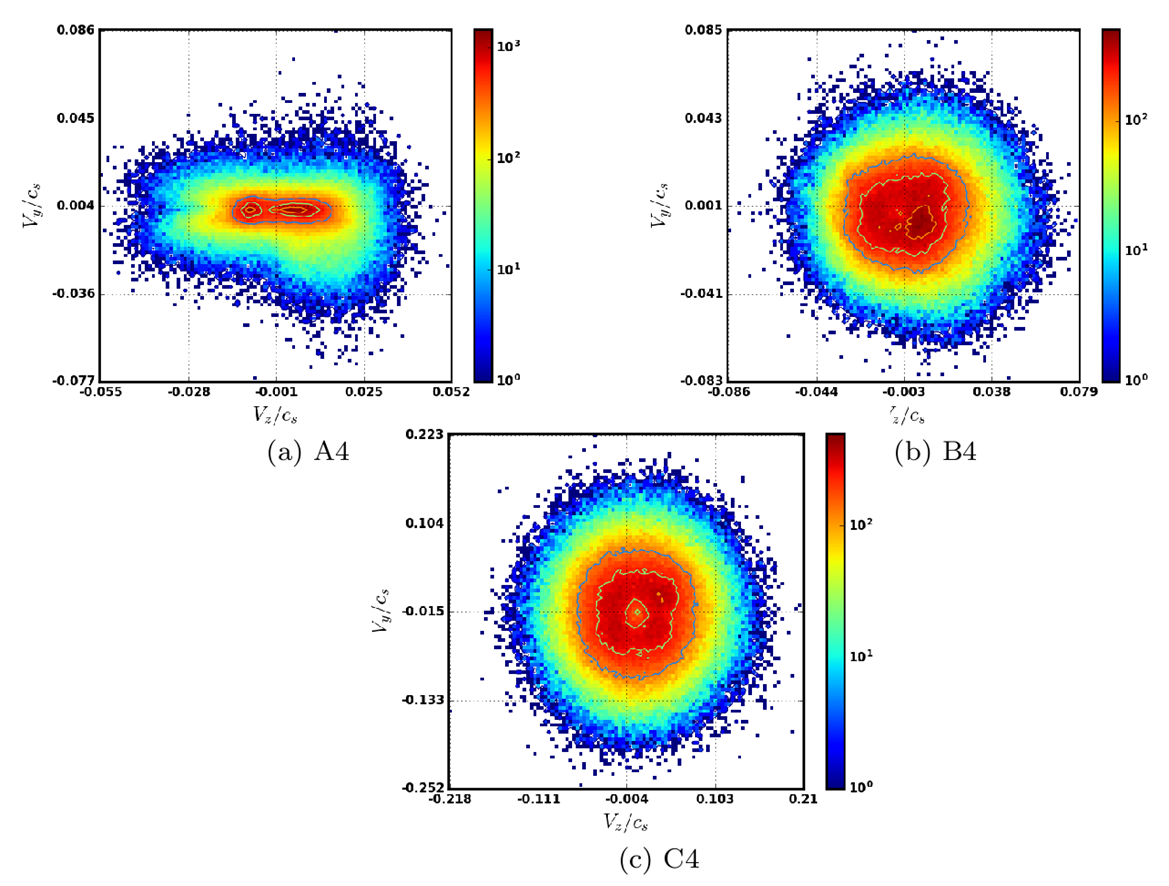

Magnetic reconnection has long been understood to be the primary mechanism responsible for the generation of non-thermal electron distributions, which in turn are responsible for the coherent non-thermal emissions at low radio frequencies. However a detailed understanding of the nature of particle acceleration due to reconnection is still lacking. Sharma et al. have carried out a first attempt to understand the details of this process using a 3D magnetohydrodynamics (MHD) framework. They investigate the role of turbulence on the reconnection rate and also study the distributions of energised particles using test-particles. They find that with increasing turbulent intensity the system enters what is usually termed the fast reconnection regime. The speeds of the energised particles are found to follow a Maxwellian distribution whose variance increases with the strength of the reconnecting field. The accompanying figure shows the joint normalised probability distribution functions of velocities of these energised particles along two perpendicular directions for (a) a low turbulence strength, (b) medium turbulence strength and (c) high turbulence strength cases.

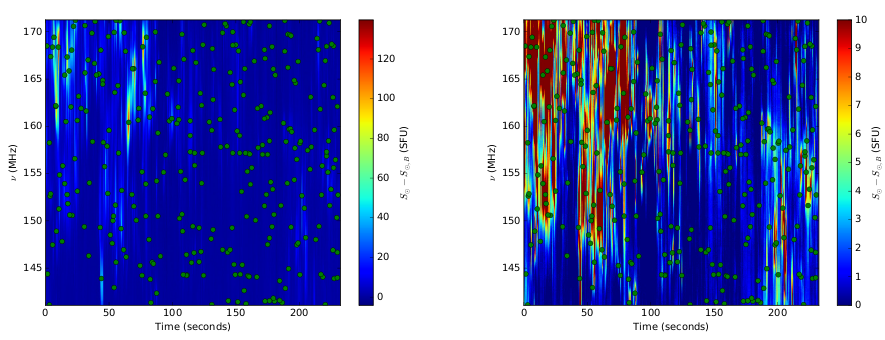

Low radio frequency solar observations using the Murchison Widefield Array (MWA) have revealed the presence of numerous weak short-lived narrowband emission features, even during moderately quiet solar conditions. These non-thermal features occur at rates of many thousands per hour in the 30.72 MHz observing bandwidth, and hence necessarily require an automated approach for their detection and characterization. Suresh et al. have developed an algorithm which employs continuous wavelet transform for feature detection in the dynamic spectrum. The green circles in the figure show the peaks of the features detected in an example MWA dynamic spectrum. The left and the right panels differ only in the colour bar range and show the efficacy of this implementation in detecting features across a range of intensities, and temporal and spectral spans. They represent the first statistically robust characterization of the properties of these features. This technique can reliably detect features weaker than 1 SFU (1 SFU = 10,000 Jy), the weakest non-thermal radio emissions so far reported in the literature. The features, which typically last for 1-2 seconds and span bandwidths of 4-5 MHz, can potentially provide an energetically significant contribution to coronal and chromospheric heating. They appear to ride on a broadband background continuum, hinting at the likelihood of their being weak, type-I solar bursts.

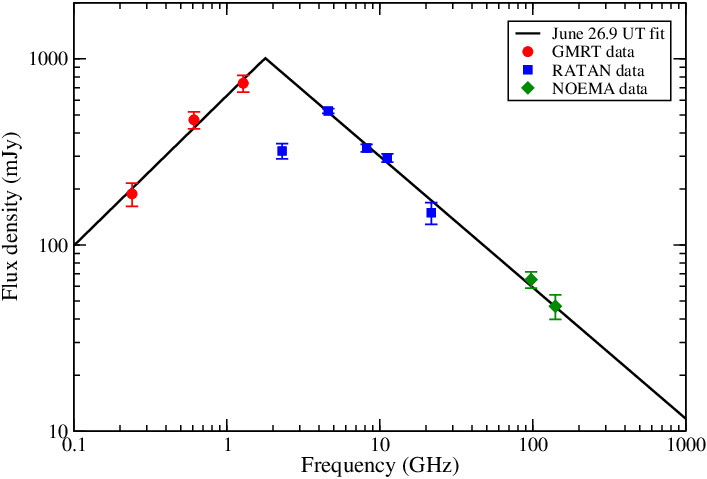

Chandra & Kanekar used the GMRT at 1280, 610, 325 and 235 MHz to monitor the black hole X-ray binary V404 Cygni during its 2015 June outburst, extending for a period of 2.5 weeks, and beginning on June 26.9 UT, a day after the strongest radio/X-ray outburst. They find the low-frequency radio emission of V404 Cygni to be extremely bright and fast-decaying in the outburst phase, with an inverted spectrum below 1.5 GHz and an intermediate X-ray state. The radio emission settles to a weak, quiescent state roughly 11 days after the outburst, with a flat radio spectrum and a soft X-ray state. Combining the GMRT measurements with flux density estimates from the literature, the authors identify a spectral turnover in the radio spectrum at ~1.5 GHz on June 26.9 UT (see the attached image), indicating the presence of a synchrotron self-absorbed emitting region. They use the measured flux density at the turnover frequency with the assumption of equipartition of energy between the particles and the magnetic field to infer the jet radius, magnetic field, minimum total energy, and transient jet power. The relatively low value of the jet power, despite V404 Cygni’s high black hole spin parameter, suggests that the radio jet power does not correlate with the spin parameter.

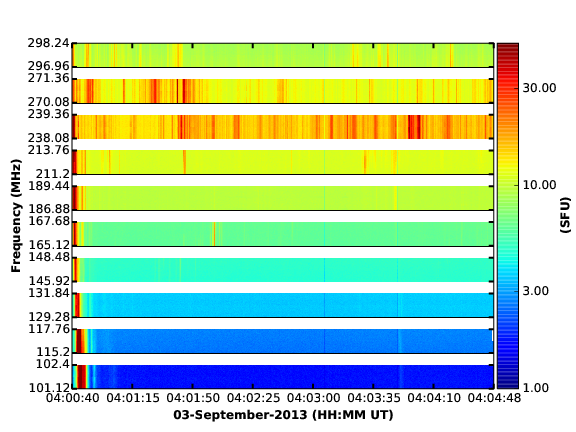

As the Sun is much brighter than the typical radio sources used for flux calibration, absolute flux calibration of solar observations is challenging. At low radio frequencies, this becomes even harder due to large fields of view of the instruments. Turning this large field-of-view into an advantage, Oberoi et al. have developed a technique suitable for a low resolution interferometric baseline to provide robust absolute solar flux calibration. Working with well-characterized antennas and receiver systems, this technique relies on using the available detailed full sky radio maps. It provides a reliable and computationally lean method for extracting parameters of physical interest using a small fraction of the voluminous interferometric data, which can be computationally prohibitively expensive to calibrate and image using conventional approaches. The figure shows an example application of this technique to data from the Murchison Widefield Array. It shows the computed values of solar flux in solar flux units (SFU; 1 SFU=10,000 Jy) as a function of time for ten spectral bands between 100 and 300 MHz.

Kharb, Lal & Merritt have used Very Long Baseline Array (VLBA) observations to discover only the second candidate sub-parsec binary black hole. The existence of such binary super-massive black holes (SMBHs) is predicted by models of hierarchical galaxy formation, but only a single such binary SMBH has been imaged until now. Kharb et al. used the VLBA to study the gas-rich interacting spiral galaxy NGC7674, which possesses a kpc-scale Z-shaped radio jet. The leading model for the formation of such Z-shaped sources postulates the presence of an uncoalesced binary SMBH, created during the infall of a satellite galaxy. Kharb et al. used the high angular resolution of the VLBA to image the central region of NGC7674 at radio frequencies between 2 and 15 GHz, resulting in the detection of two radio cores, separated by just 1 light year, at the highest observing frequency, 15 GHz. The inverted radio spectra of the two cores are consistent with their being accreting super-massive black holes!

Kale et al. used the Giant Metrewave Radio Telescope (GMRT), the XMM-Newton X-ray Observatory, and the Jansky Very Large Array to discover a new radio relic in the galaxy cluster PLCKG200.9-28.2 at z~0.22. Such arc-like radio relics are usually found at the periphery of massive colliding clusters, and are extremely rare, arising in fewer than 5% of merging clusters. Despite their rarity, radio relics are an excellent tracer of the shocks that are expected to be driven in the diffuse intra-cluster medium by violent cluster collisions. Indeed, it is very difficult to even detect these shocks at other wavelengths. So far, radio relics have been found only in the vicinity of merging massive clusters. The new radio relic detected by Kale et al. is very interesting because it arises in a cluster of low mass, the lowest mass at which such a relic has ever been seen! This demonstrates that violent mergers in low-mass clusters are capable of producing strong shock waves in their diffuse media. In the adjoining figure, the 235 MHz emission imaged with the GMRT is shown in red and the X-ray emission imaged with the XMM-Newton satellite observatory is shown in blue. The elongated source seen in red is the new radio relic.
