Operations Group

Our Team :

R.Balasubramaniam  Group Co-ordinators
Dr. Ishwar Chandra                   Dr.Nimisha Kantharia  Academic Co-ordinators



Telemetry Group

Jitendra Kodilkar Charudutta Kanade
RajuUprade Naresh Sisodiya
C. Satheesh Mayur Sutar
Mahadev



Planned activities for 2010-11:

    • Modification of software to Control MCMs and SERVO system through Ethernet C Commn.
    • Design and development of user-friendly GUI.
    • Development of improved user-friendly TeleDisp to show antenna status.
    • Interaction with other systems like Baseband, Data acquisition, Correlator and Pulsar ?

Block Diagram:

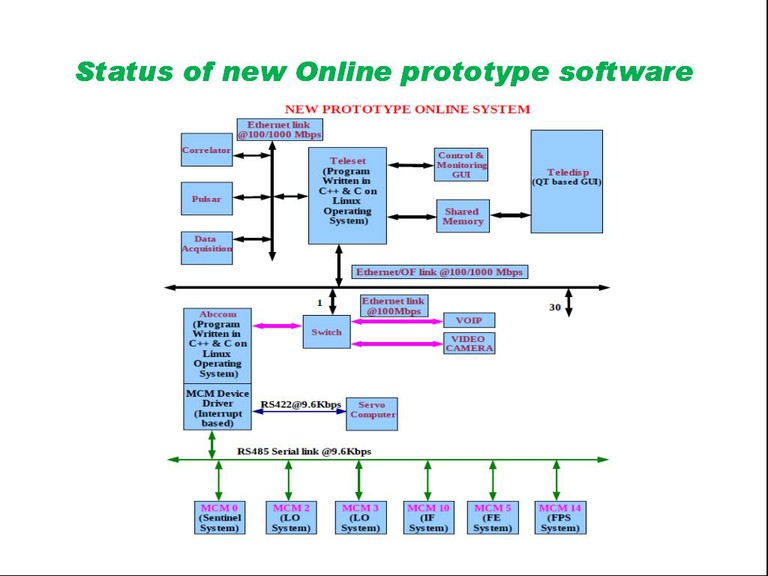

1. Online prototype software:

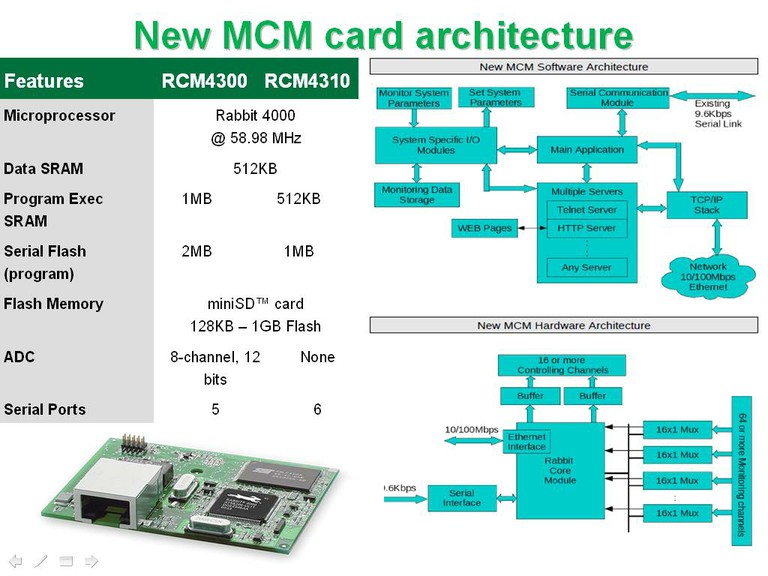

2. MCM Card Architecture:



Specifications:

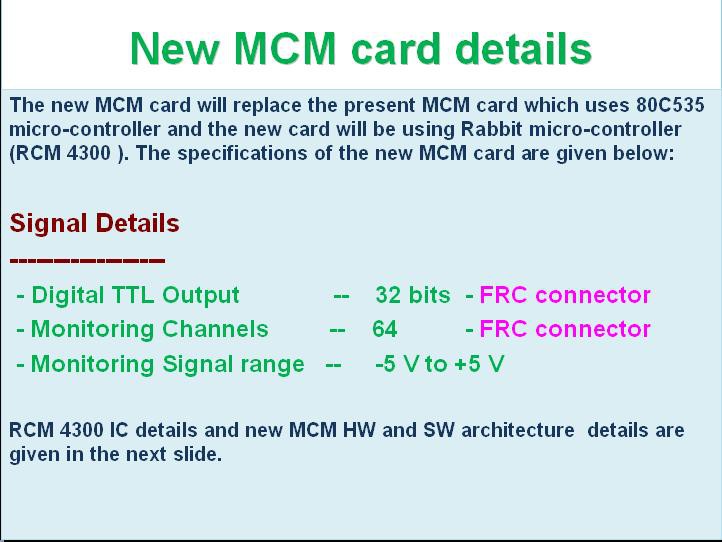

1. MCM card Specification:





Present Status:

Present Status

  • Successfully ported TeleSet, AbcCom, TeleDisp & MCM driver to FC9 from FC3.

  • The response time of the Status in from the antennas is reduced considerably.

  • Multi-user and Multi-sub array feature added to the software.

  • Automation of MCM device driver insertion in Kernel.

  • Modified software has been tested successfully in C00, C04 and C12 antennas to Control and Monitor thro' 100 Mbits/sec Ethernet

  • Communication, ABR, FPS, Servo and Sentinel systems. Live demonstrations were shown to LFRU and HPC conference participants.

  • Successfully tested Servo system thro' USB to the Serial port adaptor.

  • Development of device driver to Control MCM thro' standard USB to Serial port adapters.
